Lineup of crystalline silicon PV module manufacturing equipment

NPC provides a wide range of equipment and engineering technologies for crystalline silicon module manufacturing. We have been continuing R&D since 1994, and have delivered optimized equipment to various customers worldwide. Utilizing our experience, we are making efforts to further develop technologies and adapt to new materials. In recent years, we have also provided equipment for manufacturing special purpose PV modules such as for satellites and shingling.

Manufacturing Process	Solutions from NPC
Cell feeding ▼	Inspect cells for chips and cracks, and categorize according to their output and physical properties.	Cell Tester ・Applicable to various types of cells including highly efficient cells and back-contact cells ・Addition of laser cell cutting available
Cell soldering ▼	Solder cells in series to a string.	Tabbing & Stringing Machine ・Experienced in handling various wiring material ・Proposal of the best soldering method according to the material, such as hot air and IR lamp ・Applicable for cutting and shingling cells
Layup ▼	Arrange strings in alternate direction and connect them to form a "matrix". Stack up the matrix on a glass with encapsulant and back sheet.	Layup Machine Tape Applicator Bussing Machine ・Automated wiring material preparation Glass / Sheet Feeding Machine ・Applicable both to roll type and sheet type
Lamination ▼	Laminate the materials by heating and pressing under vacuum	Vacuum Laminator ・Proposal of appropriate pressing method depending on the laminating material ・High-precision lamination for double-glass module also available
Framing J-Box attachment	Attach aluminum frames and a junction box (J-Box).	Trimming Machine Framing Machine J-Box attachment/soldering/potting
Others	Inspection of materials and modules, repairment, etc.	Inspection device (IV/EL/camera/visual, etc.) Repair Station Buffer

Manufacturing Process

Solutions from NPC

Cell feeding

▼

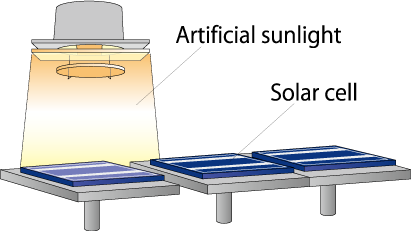

Inspect cells for chips and cracks, and categorize according to their output and physical properties.

cell feeding

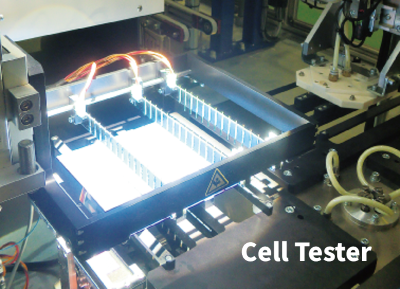

Cell Tester

・Applicable to various types of cells including highly efficient cells and back-contact cells

・Addition of laser cell cutting available cell tester

Cell soldering

▼

Solder cells in series to a string.

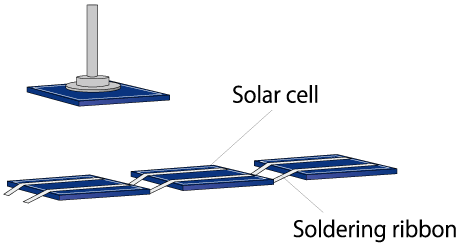

cell tabbing

Tabbing & Stringing Machine

・Experienced in handling various wiring material

・Proposal of the best soldering method according to the material, such as hot air and IR lamp

・Applicable for cutting and shingling cells

IRlamp ENG

Layup

▼

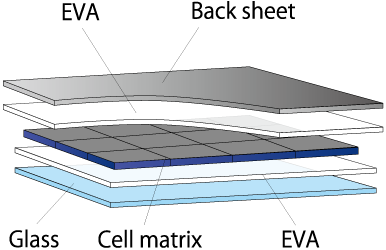

Arrange strings in alternate direction and connect them to form a "matrix". Stack up the matrix on a glass with encapsulant and back sheet.

layup

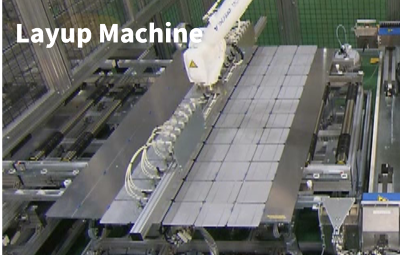

Layup Machine
Tape Applicator

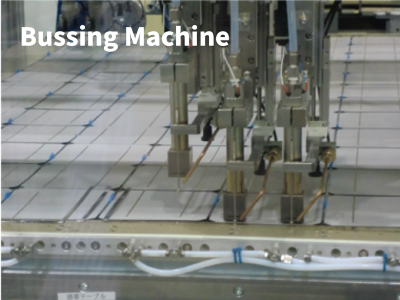

Bussing Machine

・Automated wiring material preparation

Glass / Sheet Feeding Machine

・Applicable both to roll type and sheet type

bussing

Lamination

▼

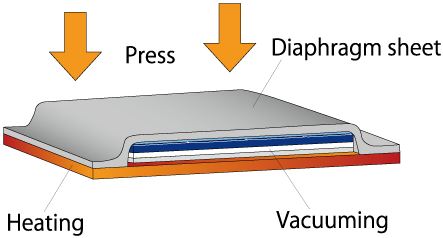

Laminate the materials by heating and pressing under vacuum

lamination

Vacuum Laminator

・Proposal of appropriate pressing method depending on the laminating material

・High-precision lamination for double-glass module also available

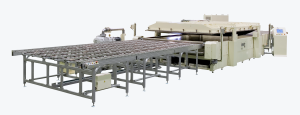

NLM laminator

Framing

J-Box attachment

Attach aluminum frames and a junction box (J-Box).

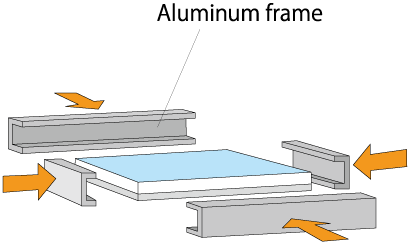

framing

Trimming Machine

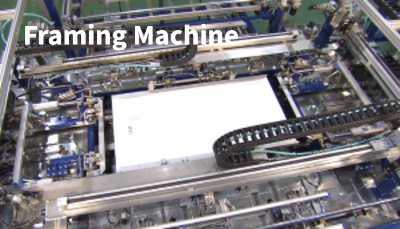

Framing Machine
J-Box attachment/soldering/potting

Others

Inspection of materials and modules, repairment, etc.

Inspection device (IV/EL/camera/visual, etc.)
Repair Station

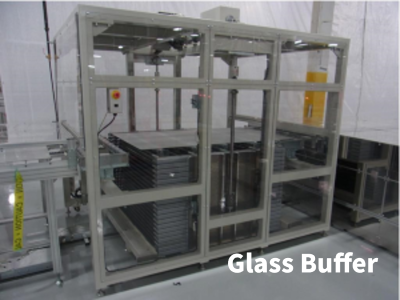

Buffer

About Shingling

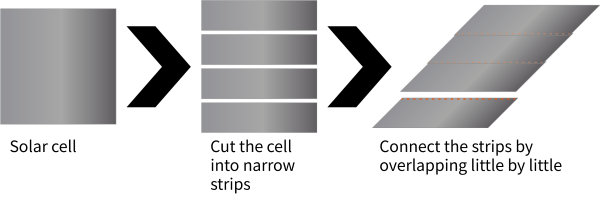

Shingling technology eliminates gaps between cells and the need for interconnecting ribbons so more solar cells are exposed to the sunlight and the resistive losses are reduced which make the module efficiency improve. Shingled modules are widely used in BIPV products such as residential roofs because of its beautiful appearance and higher efficiency even in a limited installation area.
shingling process We offer best solutions tailored to your product specifications, from stand-alone machines to total assembly. Inquiries from here.
