Vacuum Bonding Machine
Bonding without bubbles under high vacuum and pressure
|
This machine bonds various types of films onto double surface glass, LCD panels, touch screens, etc. Capable of bonding curved surface and/or uneven surface. It realizes high adhesiveness without bubbles by producing vacuum condition before applying pressure in the vacuum chamber. From 0 up to 10atm can be applied, which eliminates the need for post-process such as autoclaving.
|
|
Demonstration available at Matsuyama factory. Contact us from here.
|
|
|
Machine appearance
|
Movie |
NPC’s vacuum chamber bonding

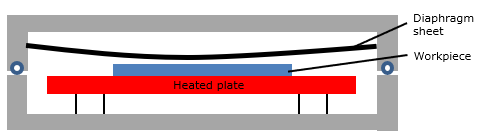

| ①Diaphragm sheet bonding |
With heat resistant rubber sheet, adhere films to workpieces with irregular form and/or uneven surface. Maximum pressure: 7atm
|
|---|---|
|
②Flat plate bonding (with a heater on the upper plate) |
Capable of uniform bonding of double surface glass, etc. Reduces winding of the edges. Maximum pressure: 3atm
|
|
③NPC's originally developped bonding method (Patent pending) |
Capable of applying pressure up to 10atm. Suitable for workpieces with uneven surface and/or workpieces that require high pressure.
|
Characteristics
※ swipe to view all ←←←
|
Vacuum (bubbles) |
Pressure (adhesiveness) | Temperature distribution |
Tact time/ Productivity |
Application |
Price | |
|---|---|---|---|---|---|---|
|
Vacuum chamber bonding |
〇 | 〇 | 〇 | 〇 | 〇 | △ |
|
Roll bonding |
△ | × | △ | 〇 | △ | 〇 |
| Autoclave bonding | - | 〇 | △ | △ | - | × |
Specifications
※ swipe to view all ←←←
| Item | Detail |
|---|---|
|
Minimum size of heating plate (W) x (H) |
200mm x 200mm |
|
Maximum size of heating plate (W) x (H) |
2,400mm x 5,500mm |
| Pressing | 0-10atm |
