“DC Fault Tester” DC Safety Inspection Device For PV Panels

PV Panel Inspection Machine

Identifies defect position instantly- contributes to saving inspection time

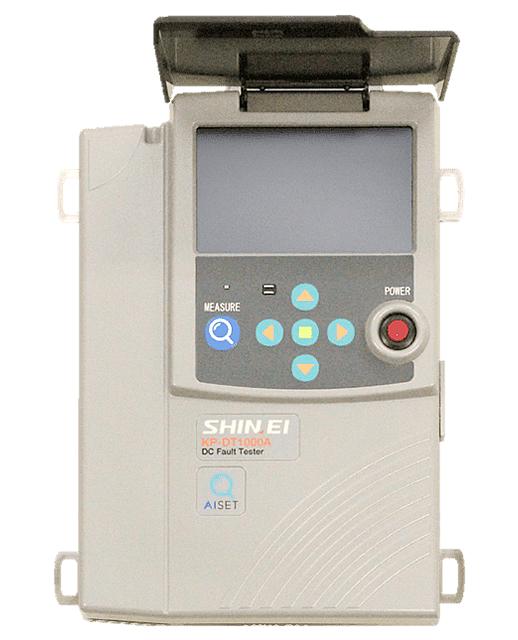

DC Fault Tester (DCFT)

DC Fault Tester

*BPD: bypass diode
Manufactured by Shin-ei Electronic Measuring Co., Ltd.
AISET provided by/DCFT sold by:OMRON Corporation

Features of DC Fault Tester

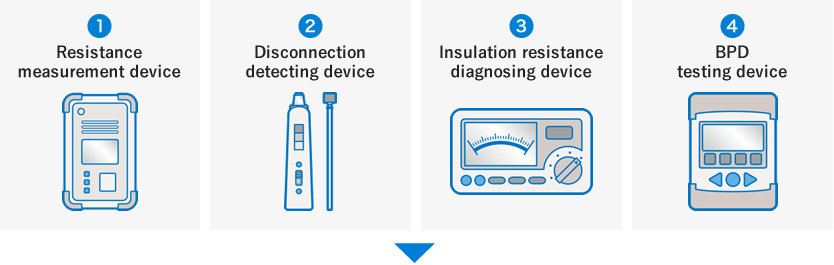

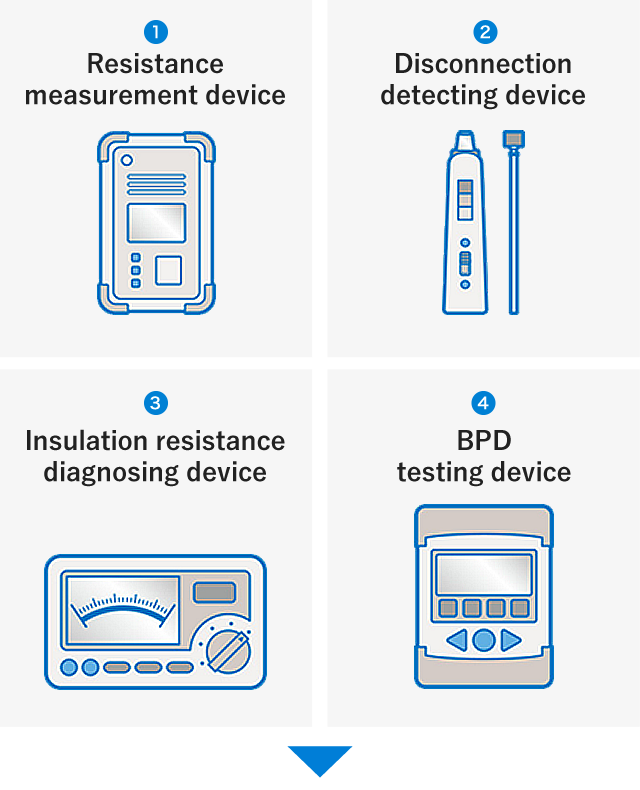

4 measurement devices are integrated in 1 body

4 measurement devices are integrated in 1 body

4 measurement devices are integrated in 1 body

Full of merits by integration

  • Small and light
  • Convenient for mobility
  • Easy handling at work
  • Great cost performance – reducing management cost such as calibration
Full of merits by integration

*1)DCFT identifies defective panels in a string, not disconnected points of each panel.
*2)DCFT checks insulation by measuring ground resistance for protecting the device and securing safety of operators.

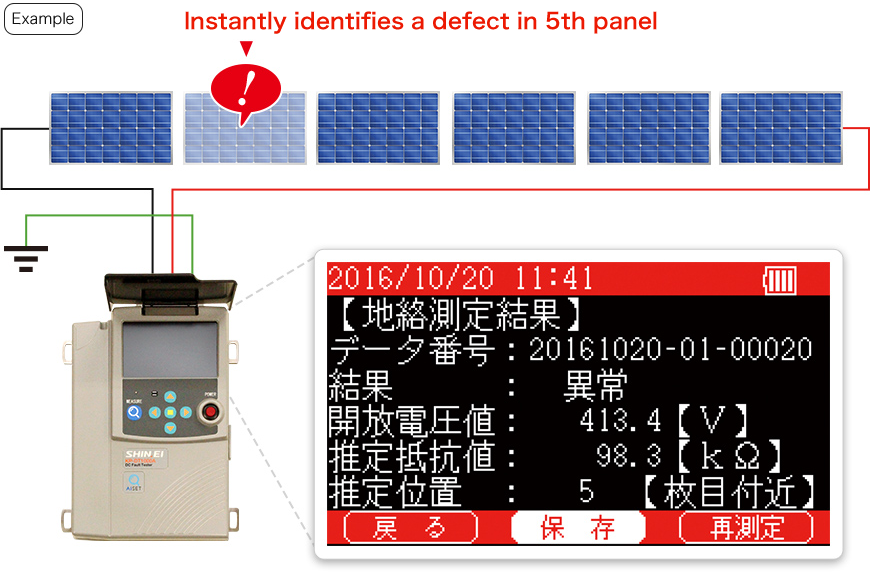

Identifies defective panels

DCFT measures 1)by string 2)by panel.

Example

No need to measure panels one by one thanks to checking between P-N-GND

No need to measure panels one by one thanks to checking between P-N-GND

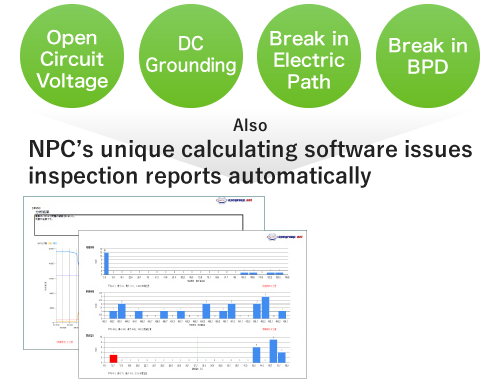

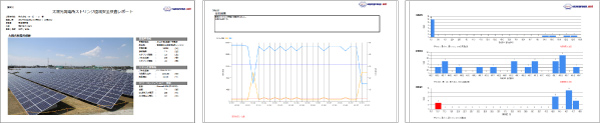

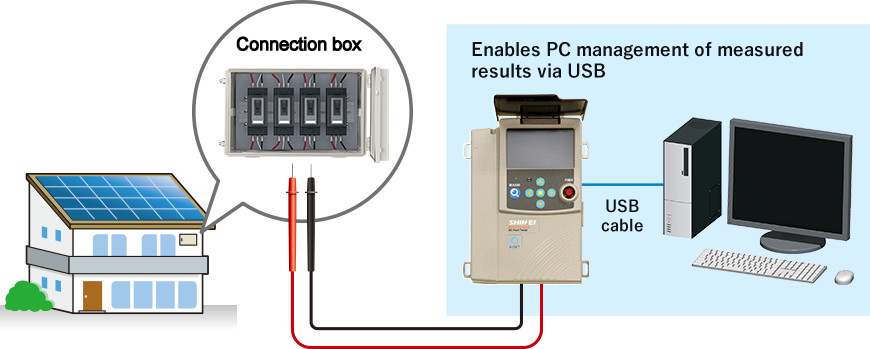

Automatically issues reports by NPC’s unique calculation software*

レポート

*Option

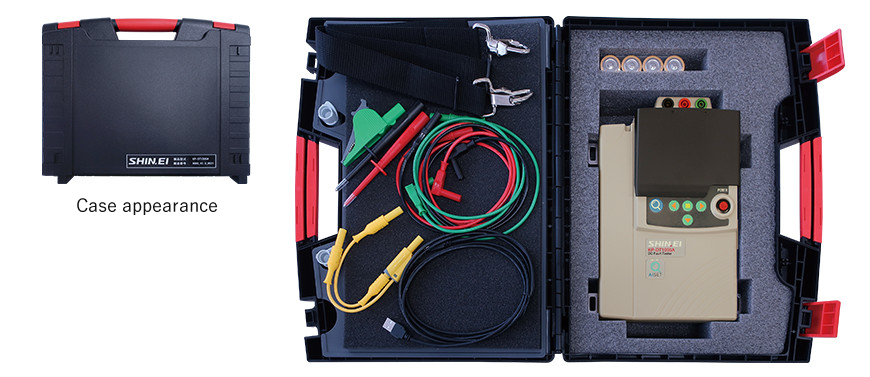

Comes with a stylish, strong hard case

Accessories like cables can be stored in the upper lid Comes with a stylish, strong hard case

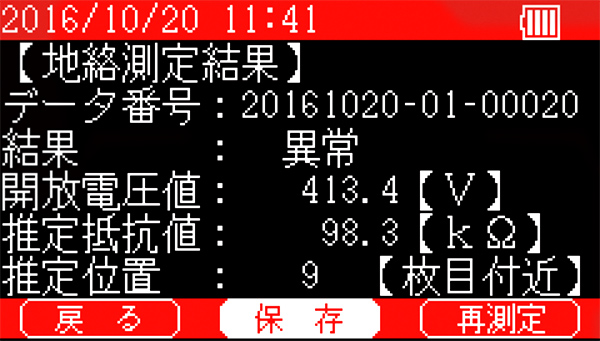

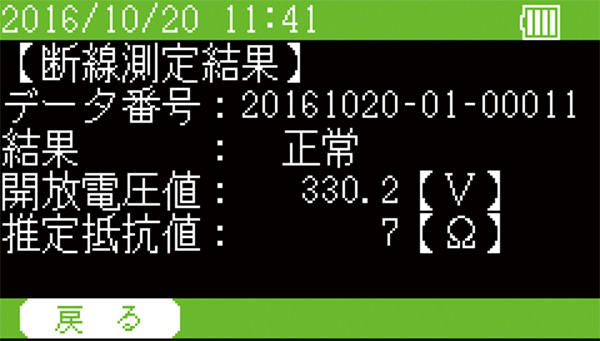

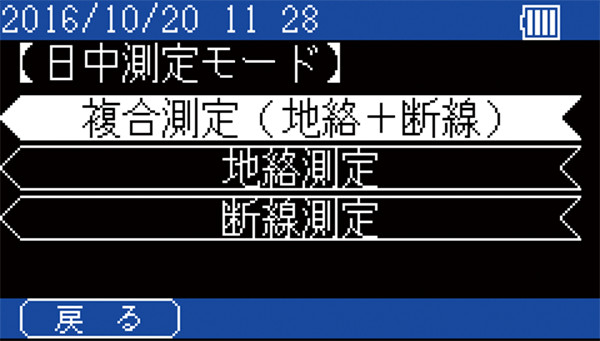

Identifies position of defects easily in various measurement modes

measurement modesmeasurement modesmeasurement modes

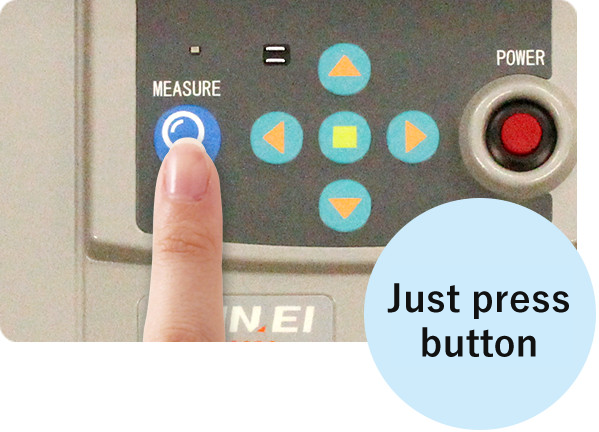

Automatic measurement by pressing button

Automatic measurement by pressing button

Inspection not affected by weather conditions

Inspection not affected by weather conditions

High accuracy enables inspection on a cloudy day or in the evening

*Only BPD should be diagnosed at night or without light

Other feature

Useful for many types of PV systems from large power plants to residential systems

Specifications

Device body

※ swipe to view all ←←←

DisplayColor TFT-LCD 4.3
Size
(W)x(H)x(D)
166mm x 265mm x 69.5mm

(excluding projection)

WeightApprox. 2.0kg (with batteries)
UtilityAA battery x4
Operating timeApprox. 5 hours
Inner memory2,000 data*
Data outputUSB2.0
AccessoryCable for daily check only, USB cable, measurement probe x3 (black/red x 1, green x1), carrying case, shoulder strap, AA battery x4, calibration certificate

*2 data will be stored by 1 measurement when grounding + disconnection measured

Measurement

※ swipe to view all ←←←

Measurement itemsVocGrounding resistanceSeries resistance

BPD Forward voltage

Measurement conditionDaytime (recommended irradiance: >100W/m2)Night (recommended Voc: <20V)
Measurement unitPanel, string
Approx. 2.0kg (with batteries)

Range of measurement

DC0.1V~1,000.0V50kΩ~2,000kΩ1Ω~1,000ΩDC0.1V~69.9V

Range of detection

-

Up to 25 series connection

Up to 20 series connection (PN type)
UP to 25 series connection (short key type)

Accuracy of detection

-

±10% of measured panels/strings

※Input of panel Voc and number of series connection is necessary for inspection.
※Measured results may not be correct if there are plural defects or long cables are used.
