PV Panel Recycling Service

We provide intermediate treatment service to recycle discarded PV panels. At Matsuyama Factory in Ehime, Japan, an automatic PV panel disassembly line is installed. The line separates glass from other materials without crushing, applying the “separation method using heated blade,” our own technology. Recycling of glass becomes difficult when metals mix with it, however our original method enables an efficient recycling as no metals exist on the separated glass.

Achievement so far for intermediate treatment of PV panels

Total:    25,114* panels treated

* As of April 30, 2020



 reuse img09 reuse img09

So far, we have treated 25,114 panels. The separated materials are handed over to the recycling companies, and we are putting maximum efforts to recycle discarded panels.

Respective equipment and disassembly process

In discarding PV panels, proper processing is required, as they include toxic materials like lead.

What is the separation method using a heated blade?

ホットナイフ分離法

In this method, a blade heated to 300℃ melts EVA layer to separate glass from other materials.
We have achieved the total recycling of glass and metals by utilizing our knowledge and technology accumulated through the development, manufacture and sales of PV module manufacturing equipment.  This method is highly evaluated as an effective and economical processing method in the industry.

Cycle time

60 seconds

Panels to be processed

Crystalline panels with back sheet

Panel size

Minimum:600 x 1,000 mm
Maximum:1,090 x 2,100 mm

“Screening Committee Special Award” of the 47th Japan Industrial Technology Award

“Encouragement Award” of the FY2019 Awards for Resources Recirculation Technologies and Systems

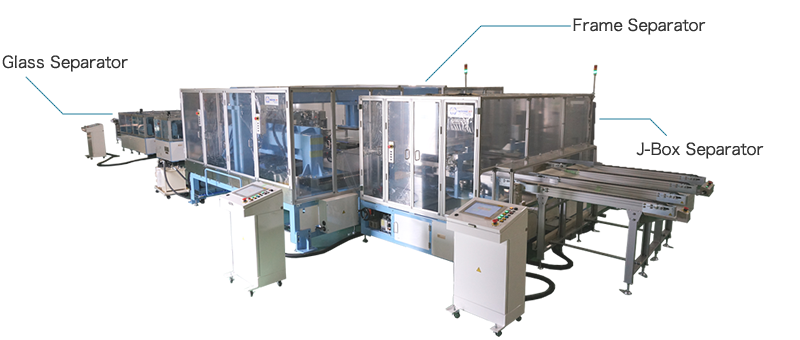

分離装置

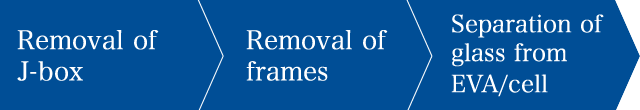

解体工程

解体工程

ジャンクションボックスを取り外す

J-Box Separator

アルミフレームを取り外す

Frame Separator

ガラスとその他の部材をポットナイフで分離

Glass Separator

Establishing the structure for proper recycling of PV panels

proper recycling of PV panels

We have been striving to establish the structure for proper recycling of PV panels. Through the structure, we will aim at creating a circular society of solar power generation.

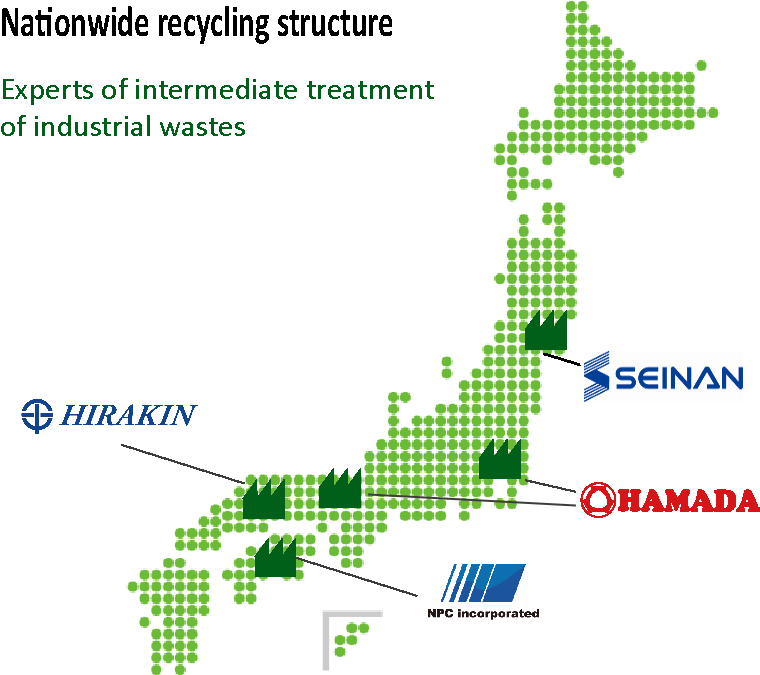

Introduction of the base

NPC Incorporated

HAMADA Co., Ltd.

HIRAKIN
